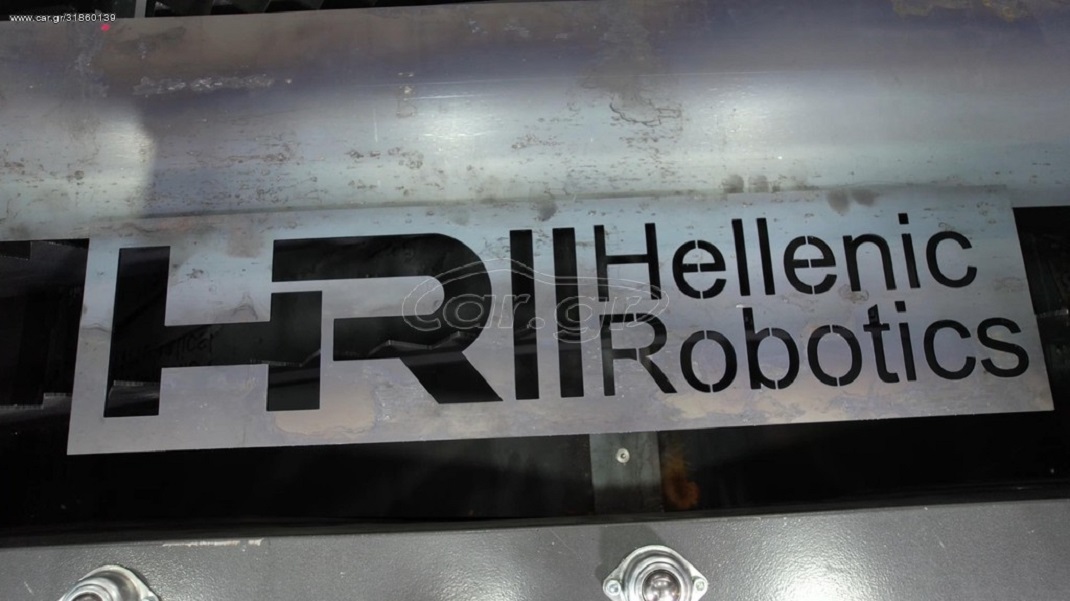

CNC HRL-1530 Fiber Laser 2Kw Metal Cutting
Technical Specifications
Useful cutting dimensions:
(Y Axis) 3050mm
(X Axis) 1550mm
(Z Axis) 160mm
Machine dimensions:
Length (L) 4750mm
Width (W) 2350mm
Height (H) 1850mm
Weight: 3200Kg
Power supply: 3x400VAC 50Hz
Maximum consumption: 18.4kW
Laser type: Continuus Wave (CW)
Wavelength: 1064 nm
Beam power: 2000 Watt Raycus - Max Photonics
Power usage: 500Watt -18,000 Watt
Maximum speed: 90m/min (1500mm/sec)
Accuracy position repeatability: ±0.02mm
Maximum load: 2200Kg
Servo motors:
Y Axis 2X (Schneider or Yaskawa) 1500Watt
X Axis 1X (Schneider or Yaskawa) 1000Watt,
Z Axis 1X (Schneider or Yaskawa) 400Watt
Planetary Reducers: Apex USA
Linear Motion Guides: HIWIN
Automatic Centralized Lubrication System
Water cooler System for Laser Generator and Head: Hanli HL-2000
Integrated software package for operation, design and nesting (Software): CypCut Laser Cutting System
Wireless remote control
Raytools Laser Head with Auto Focus Controller
Controller automatic height control (capacitance height controller) : BCS100 V3.0
Certification: CE
