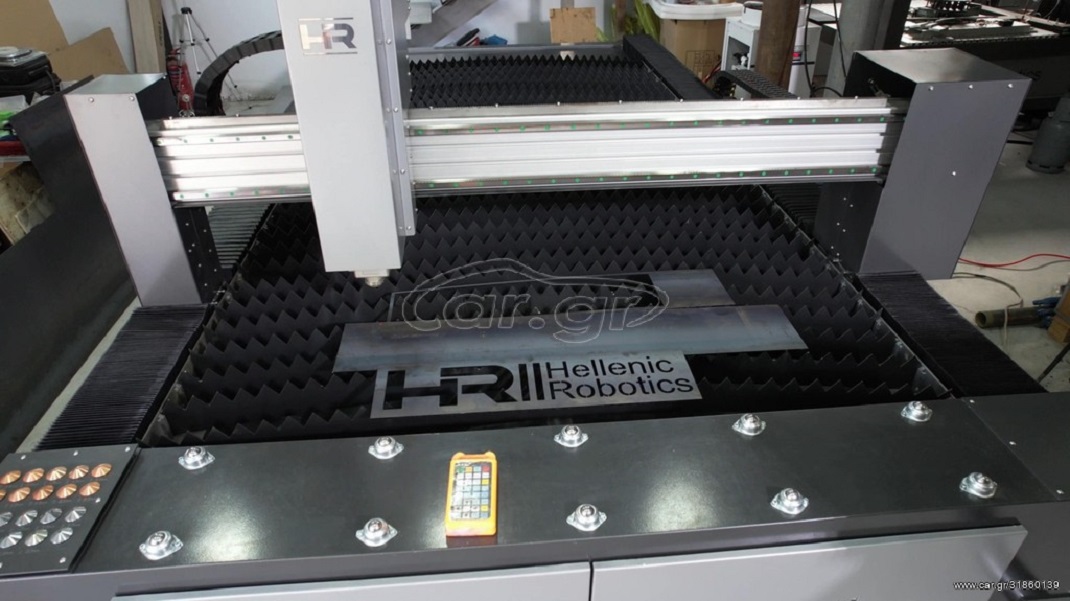

ΤCNC HRL-1530 Fiber Laser 3Kw Metal Cutting
Useful cutting dimensions: (Y Axis) 3050mm (X Axis) 1550mm (Z Axis) 160mm
Machine dimensions: Length (L) 4750mm Width (W) 2350mm Height (H) 1850mm
Weight: 3200Kg
Power supply: 3x400VAC 50Hz
Maximum consumption: 24.7kW
Laser type: Continuus Wave (CW)
Wavelength: 1064 nm
Beam power: 3000 Watt Raycus - Max Photonics
Power usage: 500Watt -18,000 Watt
Maximum speed: 120 m/min (2000mm/sec)
Position repeatability: ±0.02mm
Maximum load: 2200Kg
Servo motors: Y Axis 2X (Schneider or Yaskawa) 2000Watt X Axis 1X (Schneider or Yaskawa) 1000Watt, Z Axis 1X (Schneider or Yaskawa) 400Watt
Planetary Reducers: Apex USA
Linear Motion Guides: HIWIN
Automatic Centralized Lubrication System
Water cooler System for Laser Generator and Head: Hanli HL-3000
Integrated software package for operation, design and nesting (Software): CypCut Laser Cutting System
Wireless remote control
Raytools Laser Head with automatic autofocus system of the Laser beam (Auto Focus Controller)
Capacitance height controller: BCS100 V3.0
Certification: CE
